Product Details:
Payment & Shipping Terms:
|

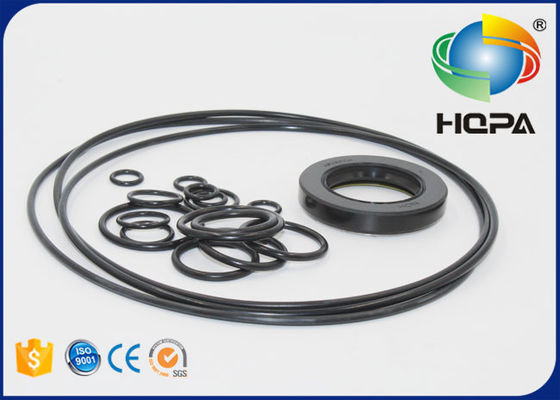

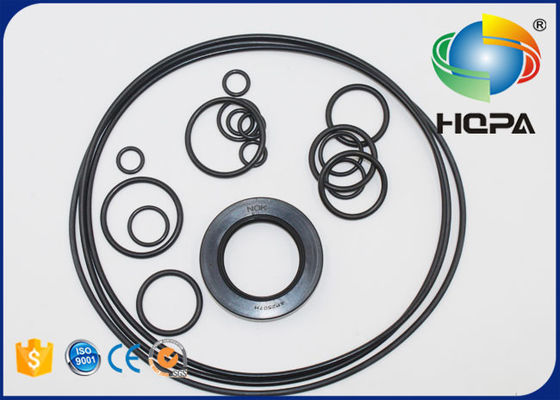

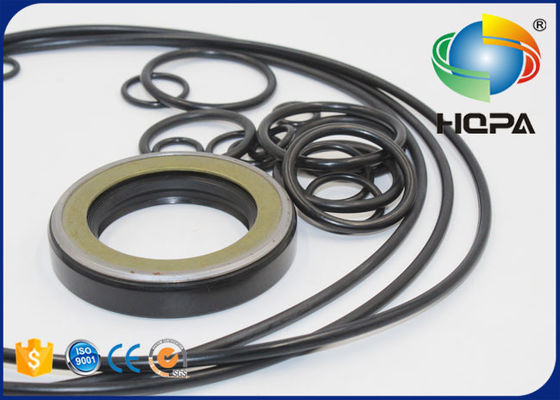

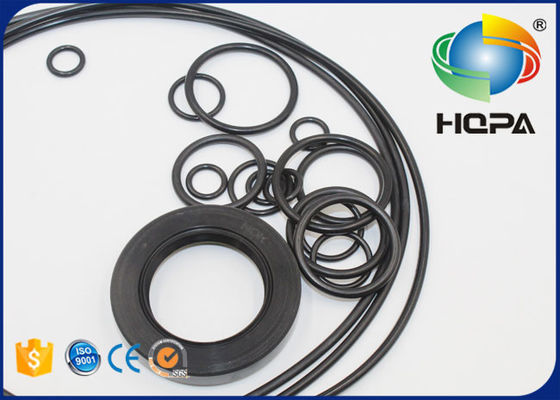

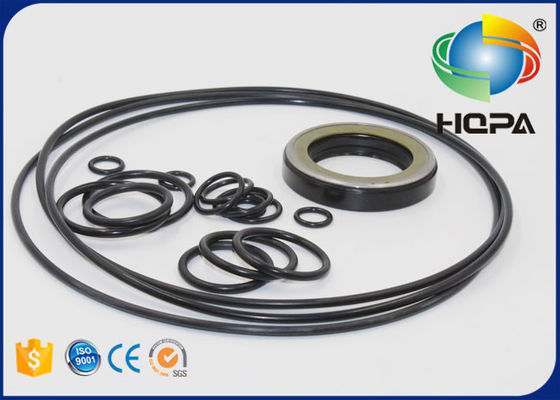

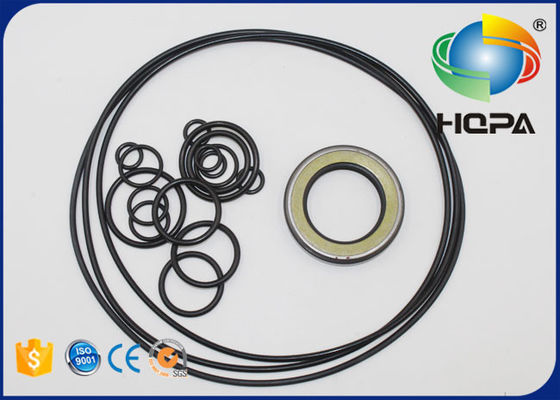

| Product: | 39Q6-11700 39Q611700 Swing Motor Seal Kit | Part Number: | 39Q6-11700 39Q611700 |
|---|---|---|---|
| Fit For Model: | Hyundai R210LC-9 R210W-9A R220LC-9S R250LC-9 R260LC-9S R180LC-9 | Group: | Swing Motor Seal Kit / Hydraulic Motor Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| Highlight: | R180LC-9 Swing Motor Seal Kit,R210LC-9 Swing Motor Seal Kit,39Q611700 |
||
|
Swing motors are hydraulic motors that form the proper turning force of excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power. Swing motor seal kits maintain the power of the swing motor. If the swing motor leaks oil, the boom cylinder will be powerless. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 39Q6-11700 39Q611700 Swing Motor Seal Kit for Hyundai R210LC-9 R180LC-9 |
| Product style | Swing Motor Seal Kit / Motor Seal Kit |
| Part No. | 39Q6-11700 39Q611700 |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Hyundai R210LC-9 R210W-9A R220LC-9S R250LC-9 R260LC-9S R180LC-9 |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
|
Part Number: 39Q6-11700 39Q611700 |
4.Related parts
| Part No | Parts name | Part No | Parts name |
| 38Q5-10150 | SWING MOTOR ASSY | 38Q5-10151 | SWING MOTOR ASSY |
| 38Q5-11100 | SWING MOTOR UNIT | 39Q6-11110 | CASING |
| 39Q6-11160 | ROTARY KIT | 39Q6-11170 | CYLINDER BLOCK KIT |
| 39Q6-11180 | BLOCK-CYLINDER | 39Q6-41290 | SPRING |
| 39Q6-11190 | RETAINER KIT | 39Q6-11200 | GUIDE-BALL |
| 39Q6-11210 | PLATE-RETAINER | 39Q6-11220 | PISTON ASSY |
| 39Q6-11660 | SEAL-OIL | 39Q6-11120 | SHAFT |
| S601-040004 | RING-SNAP | 39Q6-11130 | BEARING-ROLLER |
| 39Q6-11140 | BEARING-NEEDLE | 39Q6-11150 | PLATE-SWASH |
| 39Q6-41361 | PLATE-FRICTION | 39Q6-41370 | PLATE-SEPARATED |
| 39Q6-11250 | PISTON-PARKING | 39Q8-11180 | SPRING |
| S471-800454 | PIN-SPRING | Y172-043004 | O-RING |
| Y172-041004 | O-RING | 39Q6-11270 | PLATE-VALVE |
| S471-800254 | PIN-SPRING | Y172-042004 | O-RING |
| 39Q6-11281 | CASING A-VALVE | 39Q6-11290 | VALVE-CHECK |
| 39Q6-11300 | SPRING-CHECK VALVE | 39Q6-11671 | PLUG |
| S631-040004 | O-RING | 39Q6-41750 | PLUG |
| S631-011004 | O-RING | 39Q5-11310 | VALVE ASSY-RELIFE |
| 39Q6-11420 | REACTIONLESS VLV ASSY | 39Q6-11500 | PLUG |
| S631-012004 | O-RING | S631-018004 | O-RING |
| 39Q6-11510 | VALVE ASSY-TIME DELAY | 39Q6-11601 | GAUGE-LEVEL |
| S109-180456 | BOLT-SOCKET | S109-180556 | BOLT-SOCKET |
| P220-430202 | PLUG-HEX | 38Q6-11650 | NAME PLATE |
| 38Q6-11651 | NAME PLATE | 39Q6-41800 | RIVET |
| 39Q5-12100 | SWING REDUCTION GEAR | 39Q5-12101 | SWING REDUCTION GEAR |
| 39Q6-11700 | SEAL KIT | 38Q5-11710 | VALVE CASING KIT |
| 38Q5-10150 | SWING MOTOR ASSY | 38Q5-10151 | SWING MOTOR ASSY |
| 39Q5-12100 | SWING REDUCTION GEAR | 39Q5-12101 | SWING REDUCTION GEAR |
| 39Q5-12110 | GEAR-RING | 39Q6-12121 | SHAFT-DRIVE |
| 39Q6-12130 | BEARING-TAPER.MAIN | 39Q6-12140 | BEARING-TAPER |
| 39Q6-12150 | NUT-RING | 39Q6-12161 | PLATE-LOCK |
| S017-120166 | BOLT-HEX | 39Q6-12171 | CASING |
| 39Q6-12172 | CASING | S109-100306 | BOLT-SOCKET |
| 39Q6-12190 | CARRIER 2 | 39Q6-12200 | GEAR-PLANETARY 2 |
| 39Q6-12210 | BEARING-NEEDLE 2 | 39Q6-12220 | WASHER-THRUST 2 |
| 39Q6-12230 | PIN-CARRIER 2 | S472-800364 | PIN-SPRING |
| 39Q6-12240 | GEAR-SUN 2 | 39Q6-12260 | CARRIER 1 |
| 39Q5-12270 | GEAR-PLANETARY 1 | 39Q5-12280 | BEARING-NEEDLE 1 |
| 39Q5-12290 | WASHER-THRUST 1,UPP | 39Q5-12310 | PIN-CARRIER 1 |
| S472-600284 | PIN-SPRING | 39Q5-12320 | GEAR-SUN 1 |
| 39Q6-12330 | PLATE-THRUST | 39Q6-12340 | SLEEVE |
| S632-120001 | O-RING | 39Q6-12350 | SEAL-OIL |
| 39Q6-41450 | PIN-PARALLEL | S109-16045D | BOLT-SOCKET |
| 39Q5-12360 | NAME PLATE | 39Q5-12361 | NAME PLATE |
| 39Q6-41800 | RIVET | P220-430204 | PLUG-HEX |
| 38Q5-11100 | SWING MOTOR UNIT | 39Q6-12180 | CARRIER ASSY KIT |
| 39Q6-12250 | CARRIER ASSY KIT |
5.Related:
|
We can provide service according to the client's requirements! We always promise to offer excellent products as well as satisfactory service to our clients all over the world. If you have any problems with details please contact us, we can supply different pressure spare parts with different models as you like.
FAQ
Q1: Do you have a minimum order requirement? A: Small trial order is acceptable.
Q2: Why choose our products: 1. We can provide you a wide range of oil seals. 2. With more than 10 years experience. 3. Our oil seals has best quality and best service with competitive price. |
Welcome to contact us, we can provide high quality and the best price!
